Description

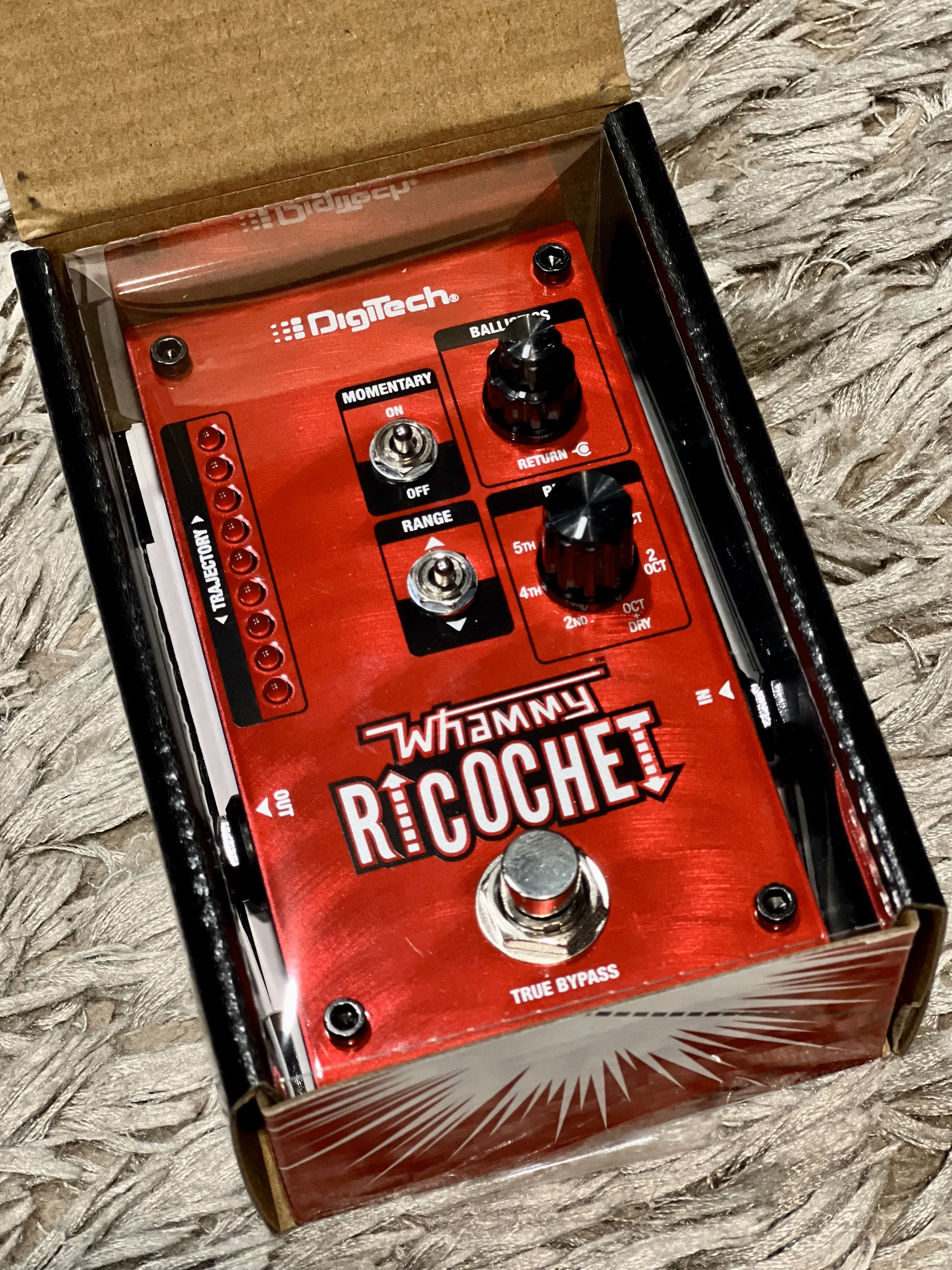

digitech pitch shifter pedal Digitech Ricochet-V-00 Pitch Shift Pedal – nafiriguitar.comGeneral Specifications : CONTROLS : Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On Off SAMPLE RATE : 44. 1 kHz in classic mode, 22 kHz in chords mode FREQUENCY RESPONSE : 20 Hz16 kHz (classic mode), 20 Hz11 kHz (chords mode) SIGNAL TO NOISE RATIO : > 106dB (A weighted); ref = max level, 22 kHz bandwidth A D A CONVERTER : 24 bit THD : 0. 004% @ 1 kHz; ref = 1 dBu w unity gain POWER CONSUMPTION : 2. 1 Watts (235 mA typical
General Specifications :
CONTROLS : Ballistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
SAMPLE RATE : 44.1 kHz in classic mode, 22 kHz in chords mode
FREQUENCY RESPONSE : 20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
SIGNAL TO NOISE RATIO : > -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A CONVERTER : 24-bit
THD : 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
POWER CONSUMPTION : 2.1 Watts (235 mA typical @ 9 VDC)
POWER REQUIREMENTS : 9V DC External Adapter (sold separately)
POWER SUPPLY : PS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
POWER ADAPTER OUTPUT 9V DC 1.3A : 9V DC 1.3A
Dimensions :
LENGTH : 4.75" (122mm)
WIDTH : 2.875" (76mm)
HEIGHT : 1.75" (47mm)
WEIGHT : 0.8 lbs.
Audio Output :
OUTPUT : 1/4" Unbalanced (Tip-Sleeve)
MAX OUTPUT LEVEL : +10 dBu
OUTPUT IMPEDANCE : 1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input :
INPUT : 1/4" Unbalanced (Tip-Sleeve)
MAX INPUT LEVEL : +5 dBu
INPUT IMPEDANCE : 1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
